Highway & Road Solar Street Light Installation: Specs, Poles, and Best Practices for SA Contractors

When bidding for road infrastructure tenders in South Africa, EPC contractors and builders face two major local realities: severe load shedding leaving highways in the dark, and rampant cable theft that renders traditional grid-tied lighting useless.

(Professional DIALux 3D layout simulation ensures tender compliance for highway projects)

Finding a reliable solar street light for road project is the ultimate solution. However, winning a municipal or SANRAL (South African National Roads Agency) tender isn't just about offering the brightest light—it’s about tender technical compliance and seamless site execution.

In this comprehensive guide, we break down the international lighting standards (EN 13201), debunk electrical myths like whether solar street lights need earthing, and explain why partnering with a one-stop solution provider saves you major installation headaches.

1. Designing to EN 13201-2:2015 Standards: Road Classification & Pole Specs

When bidding for high-end South African municipal or SANRAL projects, rule-of-thumb estimates are not enough. The tender committee requires the lighting design to strictly comply with international standards such as EN 13201-2:2015 (Road lighting - Performance requirements).

EN 13201 is a performance-based standard. It does not dictate what pole height or wattage you must buy; instead, it specifies the exact photometric results (Luminance, Illuminance, Uniformity, and Glare) that must be achieved on the road surface based on traffic speed and volume.

Here is a breakdown of the three main road classes you will encounter in tenders, and the industry best-practice pole specs our engineers recommend to guarantee compliance with these standards:

A. Highway / Main Arterial Roads (EN 13201: M-Class)

For high-speed motorized traffic, the standard focuses on high road surface luminance (Lav) and strict disability glare control (Threshold Increment - TI).

EN 13201-2 performance requirements table for M-Class highway solar street light for road projects

(Above: EN 13201-2 target metrics for M-Class roads)

To achieve these high-speed metrics, we recommend:

  • Pole Height: 8m – 12m
  • LED Power: 80W – 150W (High-lumen output)
  • Pole Spacing: 30m – 40m
  • Beam Angle Optic: Type II / Type III (Designed for wider forward throw)

B. Municipal Urban Roads (EN 13201: C-Class & P-Class)

For low-speed urban roads, conflict areas, and walkways, the standard shifts focus to horizontal illuminance (Eav) and semi-cylindrical illuminance to ensure pedestrians can recognize faces from a safe distance.

EN 13201-2 photometric requirements table for P-Class pedestrian and urban solar led street light installations

(Above: EN 13201-2 target metrics for P-Class pedestrian & low-speed areas)

To achieve these urban metrics, we recommend:

  • Pole Height: 6m – 8m
  • LED Power: 60W – 100W
  • Pole Spacing: 25m – 30m
  • Beam Angle Optic: Type II / Type III

C. Rural Roads / Village Roads (Lower P-Class)

For remote township projects or off-grid village roads where safety and basic visibility are the primary concerns (falling under lower P5-P6 classes), a cost-effective yet reliable configuration is required.

  • Pole Height: 5m – 6m
  • LED Power: 40W – 60W
  • Pole Spacing: 20m – 25m
  • Beam Angle Optic: Type II / Type V (Depending on road width)

💡 The Engineering Rule of Spacing (Backed by CIE 115 & IESNA RP-8)

To consistently hit the overall uniformity (Uo) targets shown in the tables above without creating dark spots, optical designs must align with global roadway lighting guidelines, including CIE 115 (International Commission on Illumination) and IESNA RP-8.

Based on the photometric geometry required by these standards, the industry's best-practice rule for modern batwing lenses is to set your Pole Spacing ≈ 3 to 4 times the Pole Height. For example, an 8-meter pole typically requires 24m to 32m spacing depending on the optic lens used.

2. Proving Compliance: Why DIALux Simulation Wins Tenders

DIALux roadway lighting simulation report proving EN 13201 compliance for solar street light with pole system

Municipal consultants do not want verbal promises; they want mathematical proof. This is why we provide comprehensive DIALux simulation reports for our EPC partners. As shown in the simulation above, our optical design proves to the tender committee that your bid achieves the exact Average Luminance (Lav) and Overall Uniformity (Uo) required by EN 13201, ensuring you pass the technical evaluation with ease.

3. Avoiding the Mix-and-Match Trap: The One-Stop Solution

Once the design is approved, site execution begins. One of the biggest headaches for SA contractors is sourcing the light fixture from Supplier A, the bracket from Supplier B, and hiring a local steelworks to make the pole. This often leads to mismatched spigot sizes, weak structural integrity, and delayed handovers.

We solve this by offering a complete solar street light with pole system, engineered specifically for municipal-grade durability:

  • Municipal-Grade Waterproofing: Summer thunderstorms and coastal humidity are brutal. Our solar led street light fixtures feature true IP65/IP66+ waterproof ratings, ensuring the battery and controller remain absolutely dry.
  • Aerodynamic & Wind-Resistant Poles: For coastal areas like Cape Town or Gqeberha, our hot-dip galvanized poles and precision brackets are engineered to withstand 35–45m/s gale-force winds, providing the optimal tilt angle for maximum solar charging.
  • Pre-Drilled & Matched: All components are factory-matched to fit perfectly on-site, drastically reducing your labor hours.

4. Best Practices: How to Install Solar Street Light

Proper installation ensures the longevity of the system. Here is a streamlined guide on how to install solar street light systems efficiently for highway projects:

  1. Step 1: Foundation Pouring. Excavate the hole (typically 1/6th of the pole length). Place the anchor bolt cage (J-bolts) and PVC conduit (for the earthing wire) before pouring the concrete. Ensure it cures completely.
  2. Step 2: Ground Assembly. Never attempt to assemble the fixtures at the top of a standing pole! Lay the pole horizontally on the ground to attach the bracket, solar panel, and light fixture.
  3. Step 3: Plug-and-Play Wiring. Connect the aviation cables between the solar panel and the light. Our systems feature waterproof connectors—push them together until you hear a "click," and the seal is secured.
  4. Step 4: Hoisting. Use a crane to lift the fully assembled structure. Align the base plate with the anchor bolts, tighten the nuts, and level the pole.

5. Frequently Asked Questions (FAQs)

Q1: Does solar street light need earthing?

Typical pole earthing detail CAD drawing for solar street light lightning protection

(Above: Standard CAD drawing for metal pole earthing)

Yes, the metal pole must be earthed. While solar lighting operates on a low-voltage DC system (eliminating the risk of fatal electric shock), earthing is strictly required for lightning protection.

South Africa experiences high lightning strike density. If a metal light pole is not properly earthed, a nearby lightning strike will send a massive surge directly into the equipment, instantly frying the MPPT controller and lithium battery. Proper earthing protects your asset and prevents high maintenance costs.

Q2: How to set solar street light with remote for batch programming?

When installing 100+ lights, manually climbing each pole is inefficient. Using our remote control, you can:

  • Program your desired dimming profile (e.g., 100% brightness for the first 4 hours, 50% till dawn) into the remote.
  • Press the "Send" or "Copy" button.
  • Walk or drive slowly along the installation site, point the remote at the sensor of each light, and press the trigger.

You can program an entire kilometer of highway lighting in minutes, ensuring uniform performance while massively saving on labor costs.

Win Your Next SA Road Tender with Compliant Solar Lighting

Stop risking project handovers with mismatched parts and non-compliant specs. Partner with us for complete EN 13201 compliant solar street light with pole solutions, DIALux simulation reports, and municipal-grade engineering support.

Contact Us for a Custom System Design

The Hidden Drawbacks of Solar Street Lights in the Philippines (And How to Fix Them)

Introduction: Why do so many solar street light projects fail in the Philippines?
In recent years, solar street lighting has become increasingly popular across the Philippines. For many local government units (LGUs) and engineering contractors, it represents an ideal lighting solution: no cable trenching required, reduced electricity bills, and perfect for remote, off-grid areas. However, in actual projects, many solar street lights begin to fail just 1-2 years after installation.

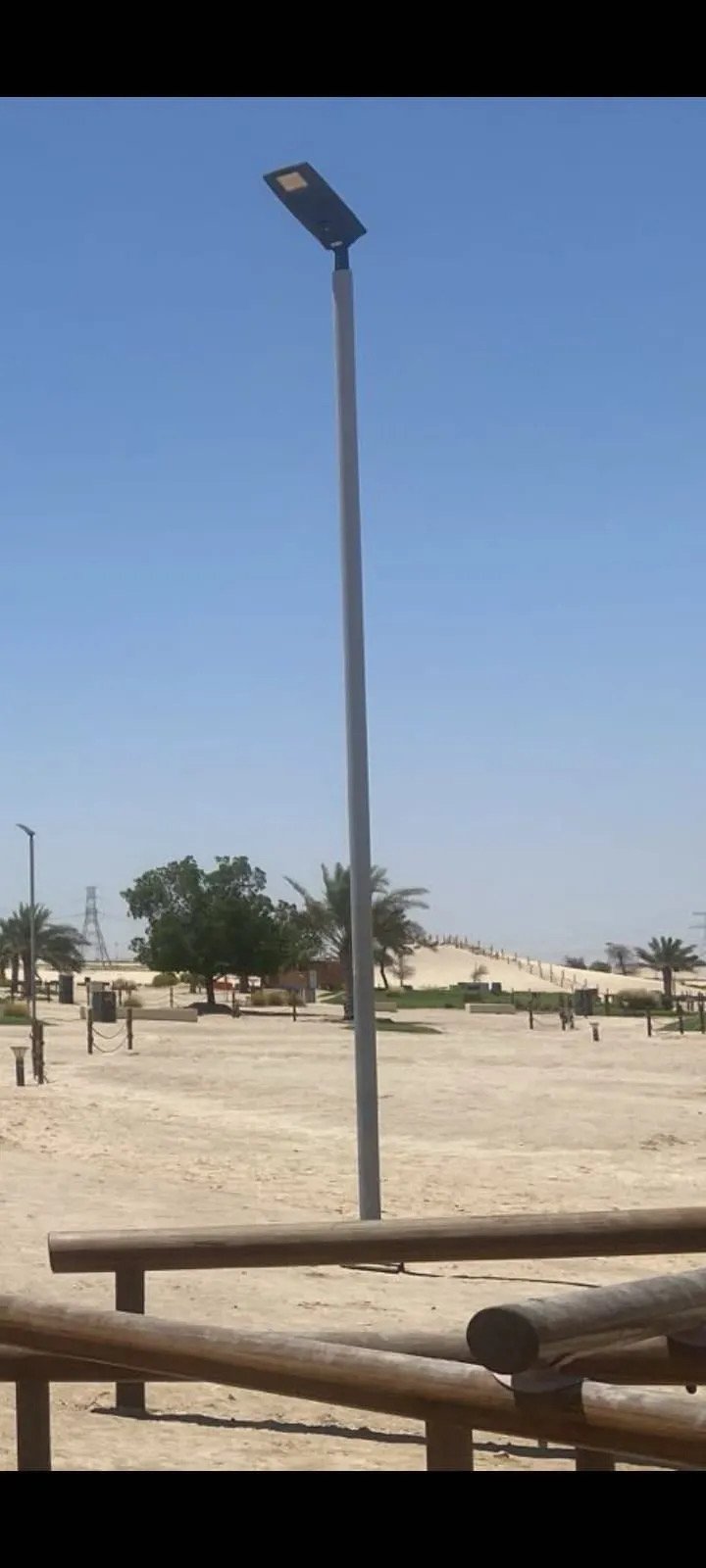

Leyond integrated solar street light withstanding typhoon-force wind, focused on the 304 stainless steel bracket

Engineering Proof: Proven reliability in the extreme heat of the Middle East. Designs validated in harsh desert climates help ensure stable performance for solar street lighting systems used in Philippine LGU and DPWH infrastructure projects.

These failures are not because solar technology itself is unreliable. The real reason is that many solar street light systems are not engineered for the extreme climate of the Philippines. The country experiences severe environmental conditions, including months-long rainy seasons, extreme heat and humidity, intense UV radiation, highly corrosive coastal salt mist, and frequent typhoons.

As a manufacturing team with 18 years of experience in industrial lighting, we have found across multiple international projects that most of these issues can be entirely avoided through proper engineering design. In this article, we will break down the three most overlooked problems with solar street lights in the Philippines and provide our professional engineering solutions.

Problem 1: The "Greenhouse Effect" Inside the Fixture Leads to Rapid Battery Failure

One of the most common complaints in solar lighting projects is that the battery lifespan is far shorter than expected. In tropical regions like the Philippines, direct sunlight can cause the internal temperature of the light fixture to exceed 60°C (140°F). If the heat dissipation design is flawed, a "greenhouse effect" forms inside the housing, causing the battery capacity to degrade rapidly, swell, and drastically reduce its cycle life.

The Engineering Solution

  • Thick-wall Die-cast Aluminum for Superior Heat Dissipation: High-quality fixtures use ADC12 die-cast aluminum integrated housings rather than cheap, thin aluminum shells. Die-cast aluminum provides exceptional Thermal Mass, effectively absorbing and dissipating internal heat.

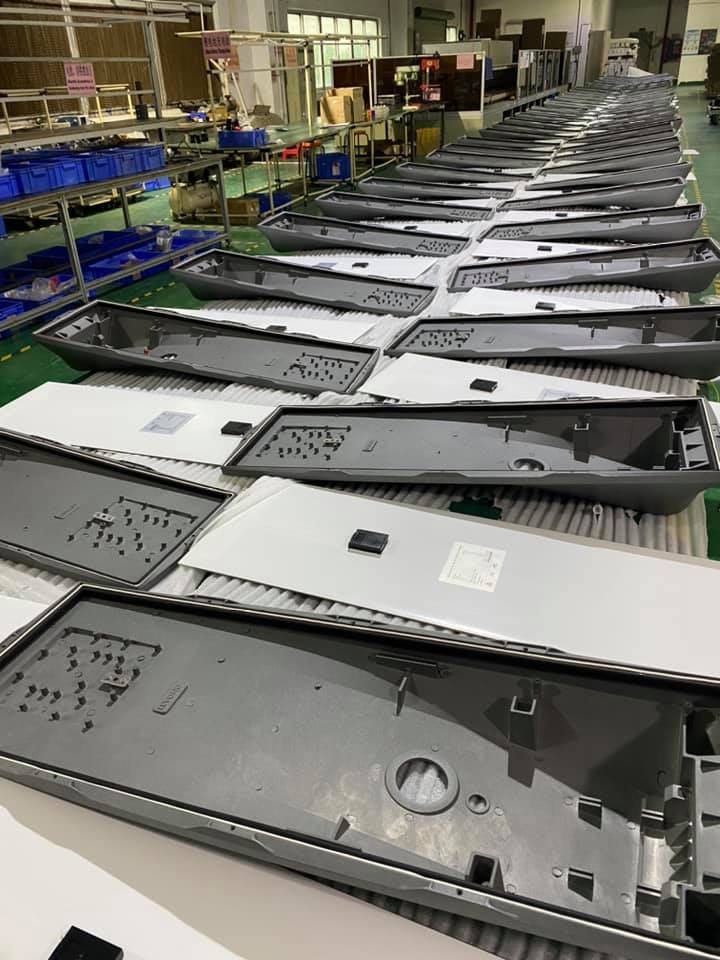

ADC12 die-cast aluminum solar housing structure

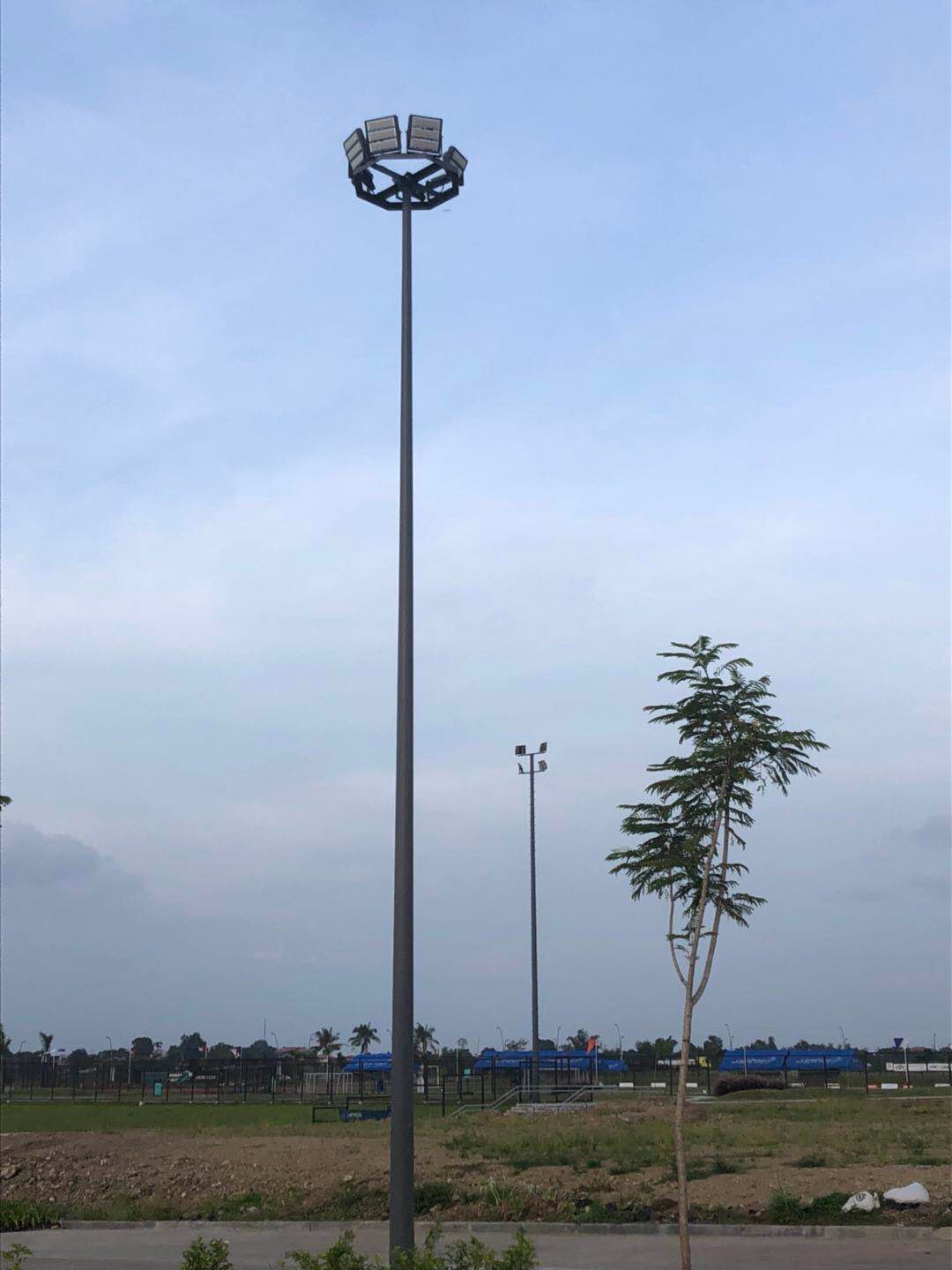

Manila high-mast lighting project installed with die-cast aluminum fixtures

High-quality solar street lights typically use ADC12 die-cast aluminum housing to improve heat dissipation and structural strength. (Note: We apply the same rigorous typhoon-resistant die-cast standards from our Manila municipal high-mast projects to our off-grid solar street lights.)

  • Using Brand New, Grade-A LiFePO4 Batteries: The most reliable battery type for this application is Lithium Iron Phosphate (LiFePO4), offering 2,000 to 3,000 charge cycles. Beware of low-cost systems using second-hand or Grade-B cells, which typically fail after just 500-800 cycles.
  • Battery Thermal Insulation Design: Engineering-grade solar street lights add fireproof thermal insulation foam around the battery pack. This creates a barrier that prevents the heat from the outer shell from transferring to the battery.

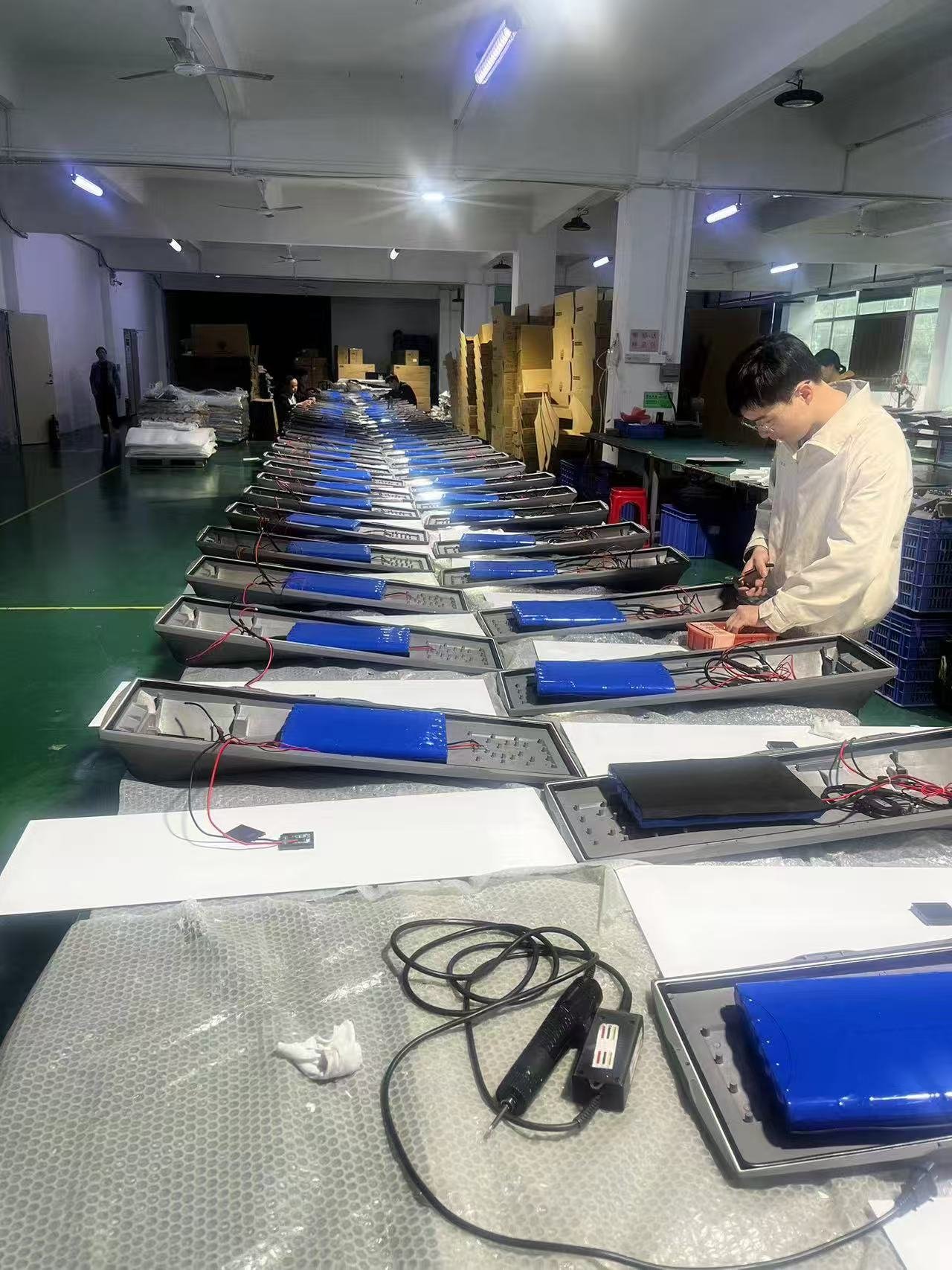

Solar street light production line showing battery installation

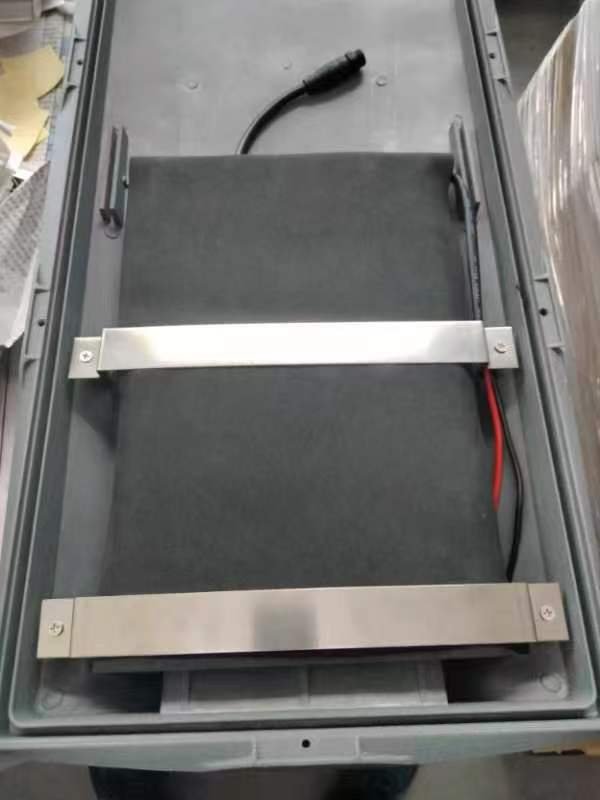

Close-up of LiFePO4 battery pack with fireproof thermal insulation foam

Note: Many low-cost solar street lights skip this insulation layer to reduce manufacturing cost, which can significantly shorten battery lifespan in tropical climates.

Problem 2: The Long Rainy Season Leaves Lights Without Power

The wet season in the Philippines can last for months. Many low-cost solar street lights rely on cheap PWM controllers, which have terrible charging efficiency under low-light conditions. After several consecutive cloudy or rainy days, the batteries simply deplete, and the lights turn off.

The Engineering Solution

Reliable systems utilize MPPT (Maximum Power Point Tracking) solar controllers. MPPT technology automatically tracks the maximum power point of the solar panel, increasing charging efficiency by 15% to 25% compared to traditional PWM controllers, ensuring the lights stay on even during prolonged rainy spells.

Solar street light production featuring MPPT solar controller integration
Close-up detail of the MPPT solar charge controller for high efficiency

Problem 3: Structural and Corrosion Issues in Typhoon and Salt Mist Environments

The Philippines has an extensive coastline. Fixtures installed in coastal or high-humidity areas are constantly exposed to salt mist and strong winds. Low-cost fixtures often show rusted screws, corroded brackets, and structural failures within just a few months.

The Engineering Solution

  • Full Aluminum Housing Structure: Aluminum possesses natural anti-corrosion properties, making it the ideal material for coastal environments.
  • 304 Stainless Steel Fasteners: All critical connection points must utilize 304 stainless steel screws and brackets. This significantly enhances the structural integrity and durability of the system against harsh salt mist and typhoon-force winds.

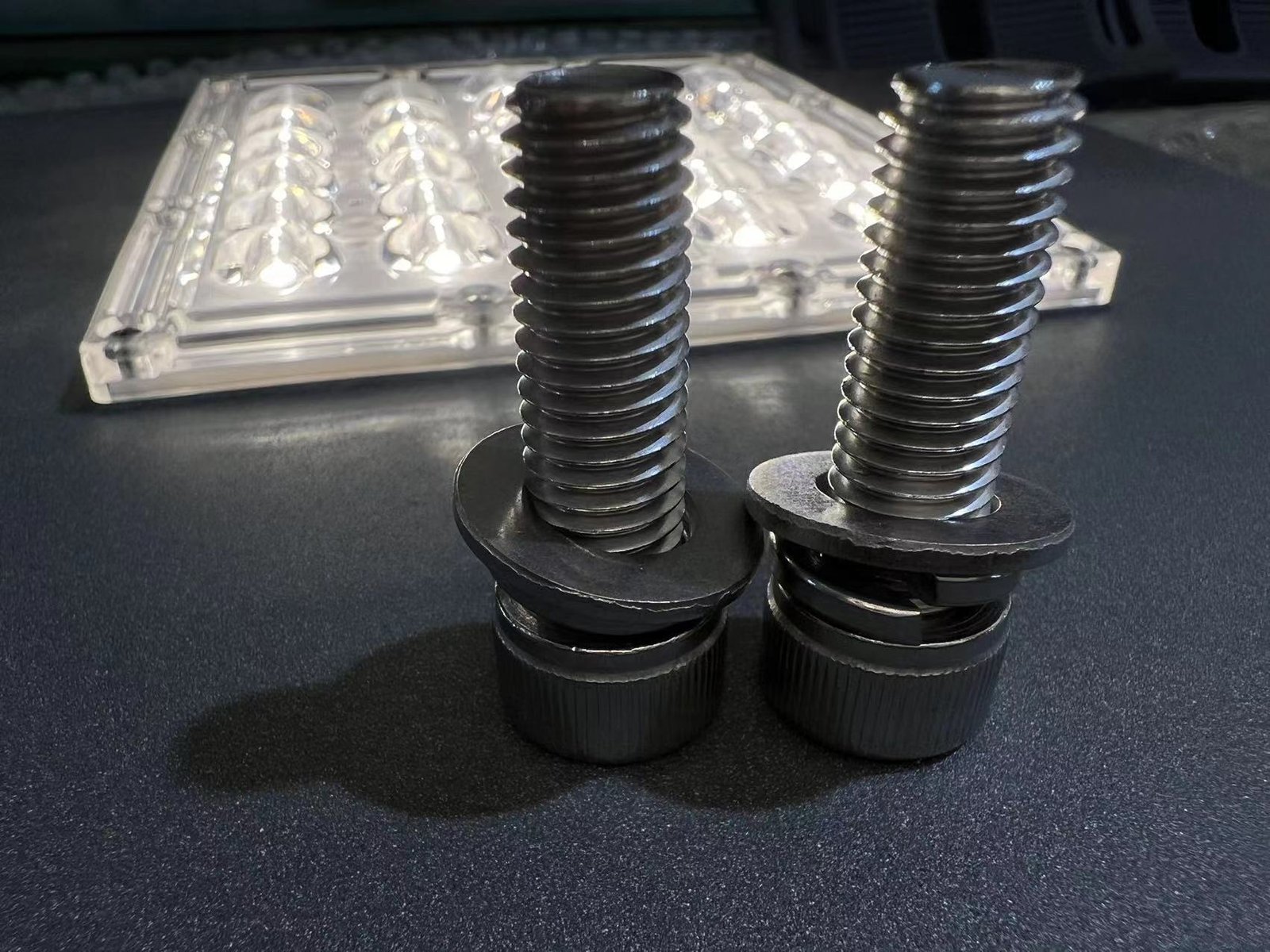

Production showing 304 stainless steel screws and fasteners

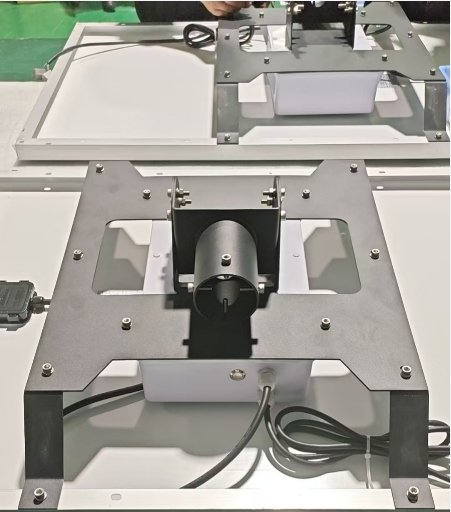

Custom anti-corrosion mounting bracket for solar street light

To prevent corrosion in coastal environments, 304 stainless steel fasteners and specialized brackets are utilized in our outdoor lighting systems. This significantly enhances structural integrity against harsh salt mist and typhoon-force winds.

What is the Real Lifespan of Solar Street Lights in the Philippines?

A properly designed, engineering-grade solar street light system can operate stably for 5 to 7 years before requiring a battery replacement. True reliability relies on robust system design, high-quality core components, and engineering tailored to the local environment.

Frequently Asked Questions (FAQ)

How long do solar street lights last in the Philippines?
Under tropical climate conditions, high-quality, engineering-grade systems typically operate stably for 5 to 7 years.

Why do many solar street lights stop working during the rainy season?
The primary reasons are undersized battery capacity and low-efficiency controllers. Upgrading to an MPPT controller and ensuring proper system sizing will resolve this issue.

How do you prevent light fixtures from corroding in coastal areas?
Utilizing a full aluminum structure (like ADC12) combined with 304 stainless steel fasteners greatly improves durability in high salt-mist environments.

Planning a Project in the Philippines?

Our engineering team can provide professional Dialux lighting simulations, solar system configuration advice, and typhoon-resistant structural evaluations tailored to your specific site.

Contact Us for an Engineering Proposal
