Highway & Road Solar Street Light Installation: Specs, Poles, and Best Practices for SA Contractors

Q: Does solar street light need earthing?

Yes, the metal pole must be earthed. While solar lighting operates on a low-voltage DC system, earthing is strictly required for lightning protection. If a metal light pole is not properly earthed, a nearby lightning strike will send a massive surge directly into the equipment, instantly frying the MPPT controller and lithium battery.

Q: How to set solar street light with remote?

To batch program solar street lights, program your desired dimming profile into the remote control, press the 'Send' or 'Copy' button, and then point the remote at the sensor of each light fixture while walking along the site to transmit the parameters instantly.

When bidding for road infrastructure tenders in South Africa, EPC contractors and builders face two major local realities: severe load shedding leaving highways in the dark, and rampant cable theft that renders traditional grid-tied lighting useless.

(Professional DIALux 3D layout simulation ensures tender compliance for highway projects)

Finding a reliable solar street light for road project is the ultimate solution. However, winning a municipal or SANRAL (South African National Roads Agency) tender isn't just about offering the brightest light—it’s about tender technical compliance and seamless site execution.

In this comprehensive guide, we break down the international lighting standards (EN 13201), debunk electrical myths like whether solar street lights need earthing, and explain why partnering with a one-stop solution provider saves you major installation headaches.

1. Designing to EN 13201-2:2015 Standards: Road Classification & Pole Specs

When bidding for high-end South African municipal or SANRAL projects, rule-of-thumb estimates are not enough. The tender committee requires the lighting design to strictly comply with international standards such as EN 13201-2:2015 (Road lighting - Performance requirements).

EN 13201 is a performance-based standard. It does not dictate what pole height or wattage you must buy; instead, it specifies the exact photometric results (Luminance, Illuminance, Uniformity, and Glare) that must be achieved on the road surface based on traffic speed and volume.

Here is a breakdown of the three main road classes you will encounter in tenders, and the industry best-practice pole specs our engineers recommend to guarantee compliance with these standards:

A. Highway / Main Arterial Roads (EN 13201: M-Class)

For high-speed motorized traffic, the standard focuses on high road surface luminance (L_av) and strict disability glare control (Threshold Increment - TI).

EN 13201-2 performance requirements table for M-Class highway solar street light for road projects

(Above: EN 13201-2 target metrics for M-Class roads)

To achieve these high-speed metrics, we recommend:

Pole Height: 8m – 12m
LED Power: 80W – 150W (High-lumen output)
Pole Spacing: 30m – 40m
Beam Angle Optic: Type II / Type III (Designed for wider forward throw)

B. Municipal Urban Roads (EN 13201: C-Class & P-Class)

For low-speed urban roads, conflict areas, and walkways, the standard shifts focus to horizontal illuminance (E_av) and semi-cylindrical illuminance to ensure pedestrians can recognize faces from a safe distance.

EN 13201-2 photometric requirements table for P-Class pedestrian and urban solar led street light installations

(Above: EN 13201-2 target metrics for P-Class pedestrian & low-speed areas)

To achieve these urban metrics, we recommend:

Pole Height: 6m – 8m
LED Power: 60W – 100W
Pole Spacing: 25m – 30m
Beam Angle Optic: Type II / Type III

C. Rural Roads / Village Roads (Lower P-Class)

For remote township projects or off-grid village roads where safety and basic visibility are the primary concerns (falling under lower P5-P6 classes), a cost-effective yet reliable configuration is required.

Pole Height: 5m – 6m
LED Power: 40W – 60W
Pole Spacing: 20m – 25m
Beam Angle Optic: Type II / Type V (Depending on road width)

💡 The Engineering Rule of Spacing (Backed by CIE 115 & IESNA RP-8)

To consistently hit the overall uniformity (U_o) targets shown in the tables above without creating dark spots, optical designs must align with global roadway lighting guidelines, including CIE 115 (International Commission on Illumination) and IESNA RP-8.

Based on the photometric geometry required by these standards, the industry's best-practice rule for modern batwing lenses is to set your Pole Spacing ≈ 3 to 4 times the Pole Height. For example, an 8-meter pole typically requires 24m to 32m spacing depending on the optic lens used.

2. Proving Compliance: Why DIALux Simulation Wins Tenders

DIALux roadway lighting simulation report proving EN 13201 compliance for solar street light with pole system

Municipal consultants do not want verbal promises; they want mathematical proof. This is why we provide comprehensive DIALux simulation reports for our EPC partners. As shown in the simulation above, our optical design proves to the tender committee that your bid achieves the exact Average Luminance (L_av) and Overall Uniformity (U_o) required by EN 13201, ensuring you pass the technical evaluation with ease.

3. Avoiding the Mix-and-Match Trap: The One-Stop Solution

Once the design is approved, site execution begins. One of the biggest headaches for SA contractors is sourcing the light fixture from Supplier A, the bracket from Supplier B, and hiring a local steelworks to make the pole. This often leads to mismatched spigot sizes, weak structural integrity, and delayed handovers.

We solve this by offering a complete solar street light with pole system, engineered specifically for municipal-grade durability:

Municipal-Grade Waterproofing: Summer thunderstorms and coastal humidity are brutal. Our solar led street light fixtures feature true IP65/IP66+ waterproof ratings, ensuring the battery and controller remain absolutely dry.
Aerodynamic & Wind-Resistant Poles: For coastal areas like Cape Town or Gqeberha, our hot-dip galvanized poles and precision brackets are engineered to withstand 35–45m/s gale-force winds, providing the optimal tilt angle for maximum solar charging.
Pre-Drilled & Matched: All components are factory-matched to fit perfectly on-site, drastically reducing your labor hours.

4. Best Practices: How to Install Solar Street Light

Proper installation ensures the longevity of the system. Here is a streamlined guide on how to install solar street light systems efficiently for highway projects:

Step 1: Foundation Pouring. Excavate the hole (typically 1/6th of the pole length). Place the anchor bolt cage (J-bolts) and PVC conduit (for the earthing wire) before pouring the concrete. Ensure it cures completely.
Step 2: Ground Assembly. Never attempt to assemble the fixtures at the top of a standing pole! Lay the pole horizontally on the ground to attach the bracket, solar panel, and light fixture.
Step 3: Plug-and-Play Wiring. Connect the aviation cables between the solar panel and the light. Our systems feature waterproof connectors—push them together until you hear a "click," and the seal is secured.
Step 4: Hoisting. Use a crane to lift the fully assembled structure. Align the base plate with the anchor bolts, tighten the nuts, and level the pole.

5. Frequently Asked Questions (FAQs)

Q1: Does solar street light need earthing?

Typical pole earthing detail CAD drawing for solar street light lightning protection

(Above: Standard CAD drawing for metal pole earthing)

Yes, the metal pole must be earthed. While solar lighting operates on a low-voltage DC system (eliminating the risk of fatal electric shock), earthing is strictly required for lightning protection.

South Africa experiences high lightning strike density. If a metal light pole is not properly earthed, a nearby lightning strike will send a massive surge directly into the equipment, instantly frying the MPPT controller and lithium battery. Proper earthing protects your asset and prevents high maintenance costs.

Q2: How to set solar street light with remote for batch programming?

When installing 100+ lights, manually climbing each pole is inefficient. Using our remote control, you can:

Program your desired dimming profile (e.g., 100% brightness for the first 4 hours, 50% till dawn) into the remote.
Press the "Send" or "Copy" button.
Walk or drive slowly along the installation site, point the remote at the sensor of each light, and press the trigger.

You can program an entire kilometer of highway lighting in minutes, ensuring uniform performance while massively saving on labor costs.

Win Your Next SA Road Tender with Compliant Solar Lighting

Stop risking project handovers with mismatched parts and non-compliant specs. Partner with us for complete EN 13201 compliant solar street light with pole solutions, DIALux simulation reports, and municipal-grade engineering support.

2026 Guide: How Industrial-Grade Motion Sensor LED Street Lights & UFO High Bays Cut Energy Use in Low-Sunlight Areas

Not Every Place Is Suitable for Solar Street Lights – So How Can We Still Save Energy?

Solar street lights have gained massive popularity for their eco-friendly and cost-saving features. However, as professional lighting buyers and contractors know, not all environments are ideal for solar installations. In regions with limited sunlight (high latitudes), heavy tree coverage, or frequent rainy seasons, solar lighting can become unstable—or even fail to operate properly.

The Solution: Grid-Tied Lighting with Intelligent Motion Control

In these cases, how can we still achieve significant energy savings? The answer lies in AC-powered fixtures—specifically Municipal LED Street Lights and Industrial Warehouse UFO High Bays—integrated with advanced motion sensors.

Why focus on Street and Warehouse lighting?
In applications like Stadiums or Gas Stations, the operational requirements demand continuous, high-intensity, and high-uniformity illumination (for sports broadcasting or commercial visibility). In these high-intensity zones, dimming is not an option.

However, Street Lights and Warehouses operate on an “Adaptive Safety Lighting” rhythm. These areas often experience long “vacancy periods” at night. By using the MC079D RC2 5.8GHz sensor, we provide full-power safety only when movement is detected, while achieving solar-level efficiency the rest of the time.

Deep Dive: 4 Professional Sensing Modes (Based on Specifications)

Our sensor technology doesn’t just detect movement; it perceives the environment. Below are the four core functions as detailed in our technical specifications. Note: The standby dimming level (e.g., 20%) is fully customizable to meet your specific project needs.

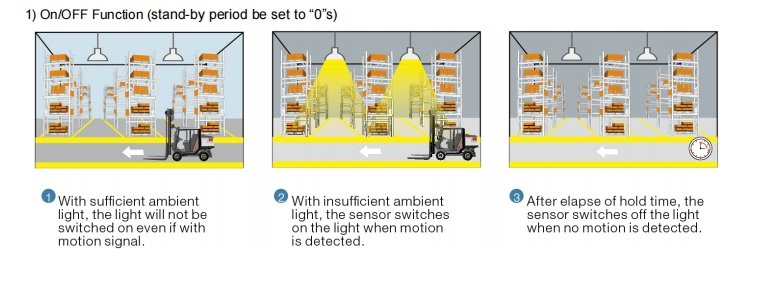

1) On/OFF Function (Stand-by Period set to “0s”)

Daylight Priority: When ambient light is sufficient, the light stays OFF even if motion is detected.
Night Logic: Only when natural light is insufficient will the sensor trigger the light to 100% brightness upon detecting motion. The light turns completely OFF after the hold time elapses.

Motion sensor LED lighting On-Off function with daylight priority logic

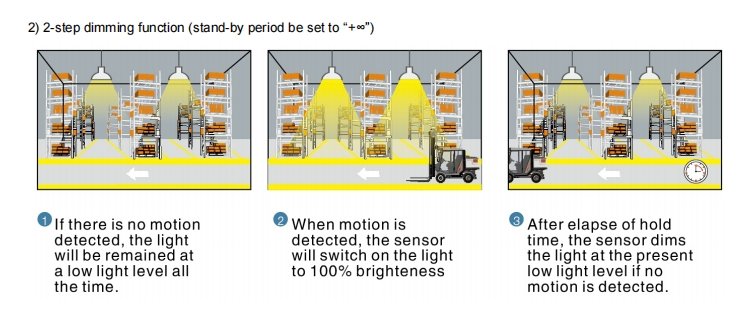

2) 2-Step Dimming Function (Stand-by Period set to “+∞”)

Adaptive Safety Glow: Designed for areas that should never be pitch black. The light remains at a pre-set low light level (e.g., 20% or your custom setting) all night when no motion is detected.
Active Response: When motion is triggered, it instantly ramps up to 100% brightness for maximum visibility.

2-step dimming function for constant safety lighting in warehouses

3) 3-Step Dimming Function (Flexible Timed Stand-by)

Daylight Priority: Similar to Mode 1, the fixture stays off during the day regardless of movement.
Intelligent Transition: At night, it follows a three-step path: 100% Brightness (Motion detected) -> Low Light Level (No motion after hold time) -> Completely OFF (after the standby period ends, e.g., 30 min).

3-step dimming motion sensor logic: 100% to low light to off

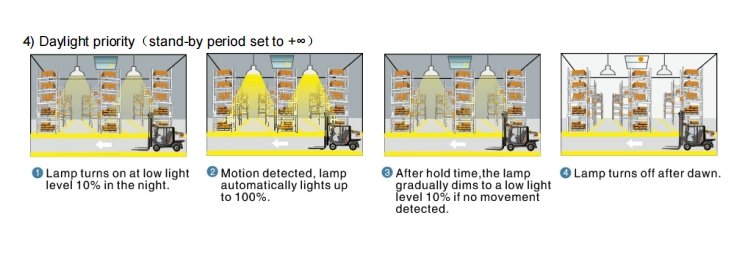

4) Daylight Priority (Stand-by Period set to +∞)

Dusk-to-Dawn Logic: This mode prioritizes natural light balance. The lamp turns on at a low light level (e.g., 10%) automatically as night falls.

Daylight priority lighting mode for dusk-to-dawn intelligent control

Verified by Factory Production & Real-Time Testing

We believe in providing concrete proof of performance to our global partners:

Customizable Power Shift: In our factory testing of the UFO High Bay series, we demonstrate the efficiency of the 3-Step Dimming logic. As seen on our high-precision power meters, the consumption drops from 100% to exactly 20% (or your preferred setting) just 5 seconds after the area becomes vacant.
Industrial-Grade Reliability: Our production photos show our “Petrel” Street Lights and UFO High Bays being fitted with the MC079D RC2. These 5.8GHz microwave sensors are superior to traditional PIR as they work stably at 12-15m heights and are unaffected by ambient temperature.
Ground-Level Commissioning: As shown in our demonstration, all settings—including detection area, hold time, and stand-by dimming levels—are configured via a Professional Remote Controller. There is no need for bucket trucks; the entire system is commissioned safely from the ground.
UFO High Bay: 100% to 20% Power Shift

Street Light: Adaptive Motion Sensing Power Shift

Conclusion: Smart Saving is Always an Option

Solar may have its limits, but smart energy saving does not. By choosing grid-tied LED Street Lights or UFO High Bays with integrated motion sensors, you are investing in a system that is stable, weather-proof, and highly efficient.

As a manufacturer with 15 years of expertise, we ensure every fixture is factory-tested to meet the rigorous demands of 2026 infrastructure projects.
